Hive receiver into Glowworm Betacom 24 boiler

[Jaauk]

Hi,

I have just bought a Hive thermostat, but I can't work out how to connect the receiver into the boiler.

I have connected the backplate to the permanent live / neutral from the spur, but not sure where the Common, Heating Off, and Heating On terminals need to be connected to in the boiler.

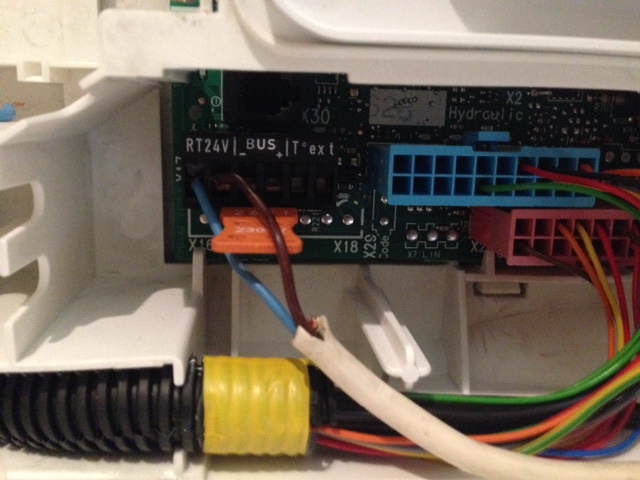

The existing thermostat is connected into the boiler with 2 wires, to the 24V terminals:

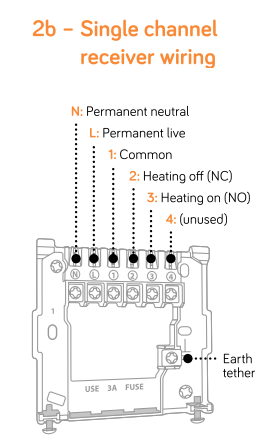

Hive backplate wiring diagram:


Boiler manual:
http://www.glow-worm.co.uk/glow-worm/betacom2-instn-serv-157121.pdf

Any help would be greatly received.

Thanks,

James



[EFLImpudence]

1 & 3 instead of the existing thermostat.

L & N from supply.



[ericmark]

The diagram you show says 1 and 3 if you can't work that out then how will you program the Hive?
