Nest Thermostat E Installation

[Branflake98]

Hi,

I plan on installing a Nest Thermostat E with Heat Link to my property however can’t seem to match up the wiring on the apps instructions.

The property was built last year and has air source heating installed, I have, in the cupboard some sort of tank with a Daikin control panel. I have then, in the hallway a Myson Thermostat for my heating.

I cannot match up the wiring on the nest app and not sure if it’s compatible or not.

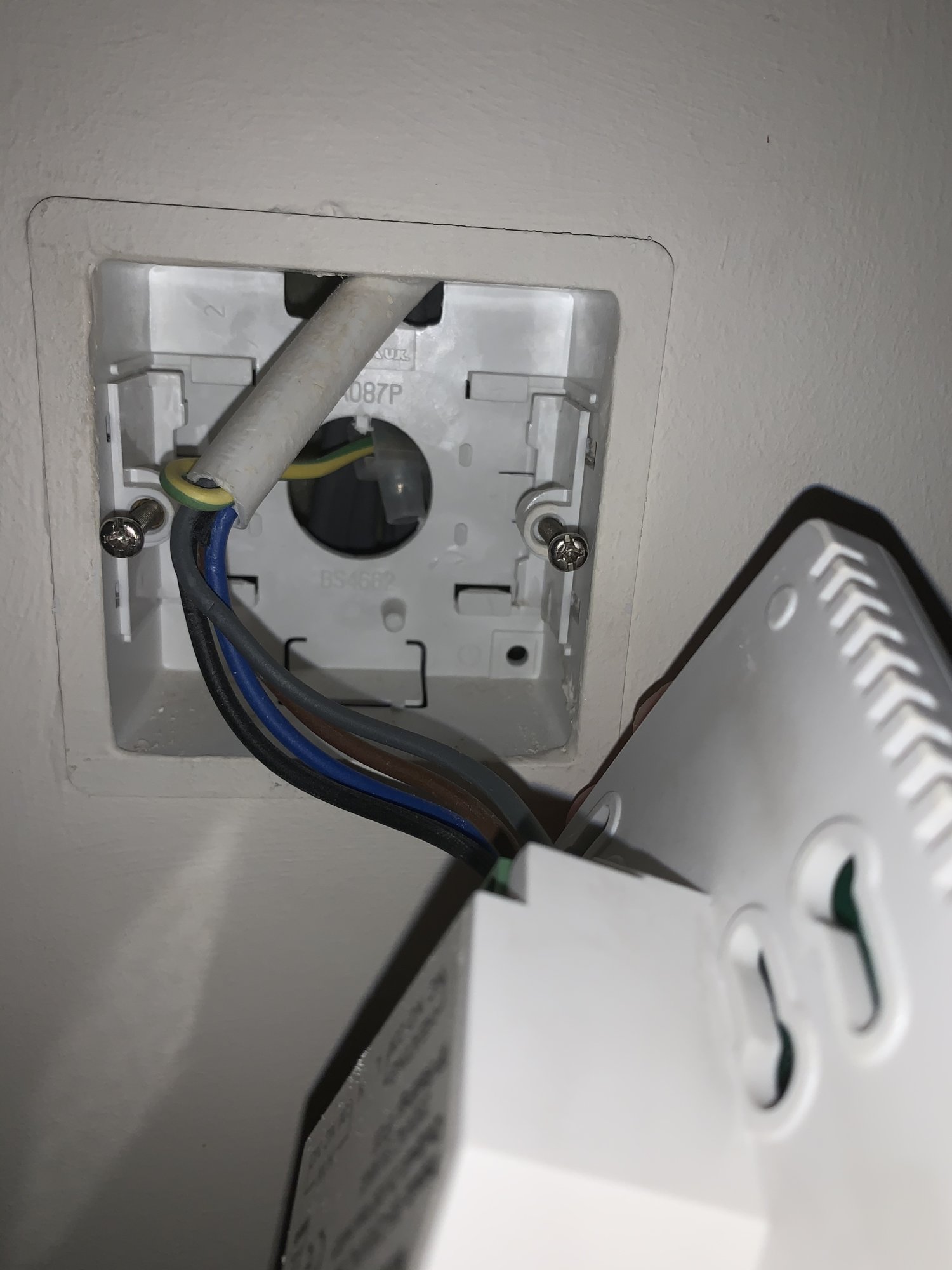

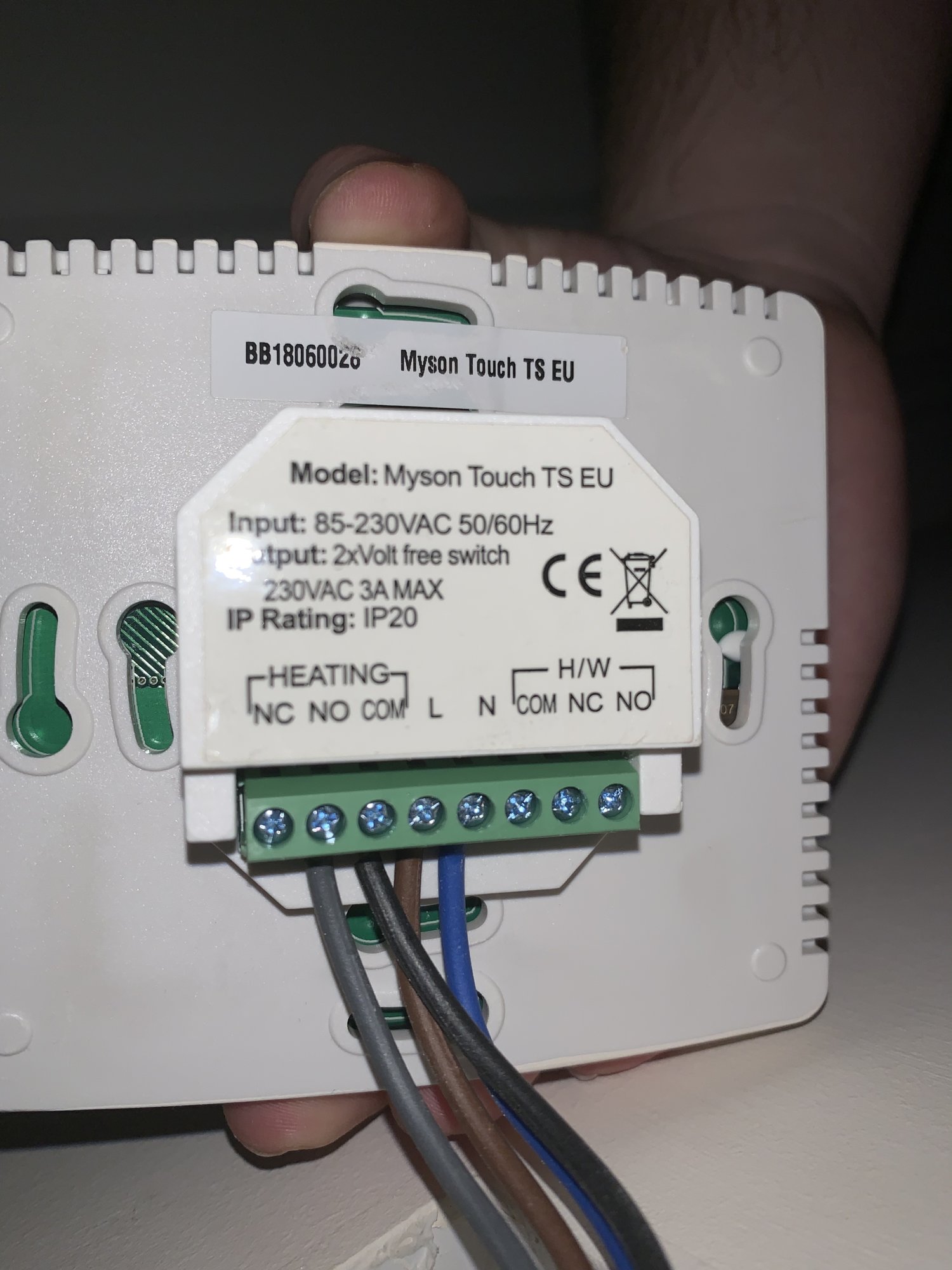

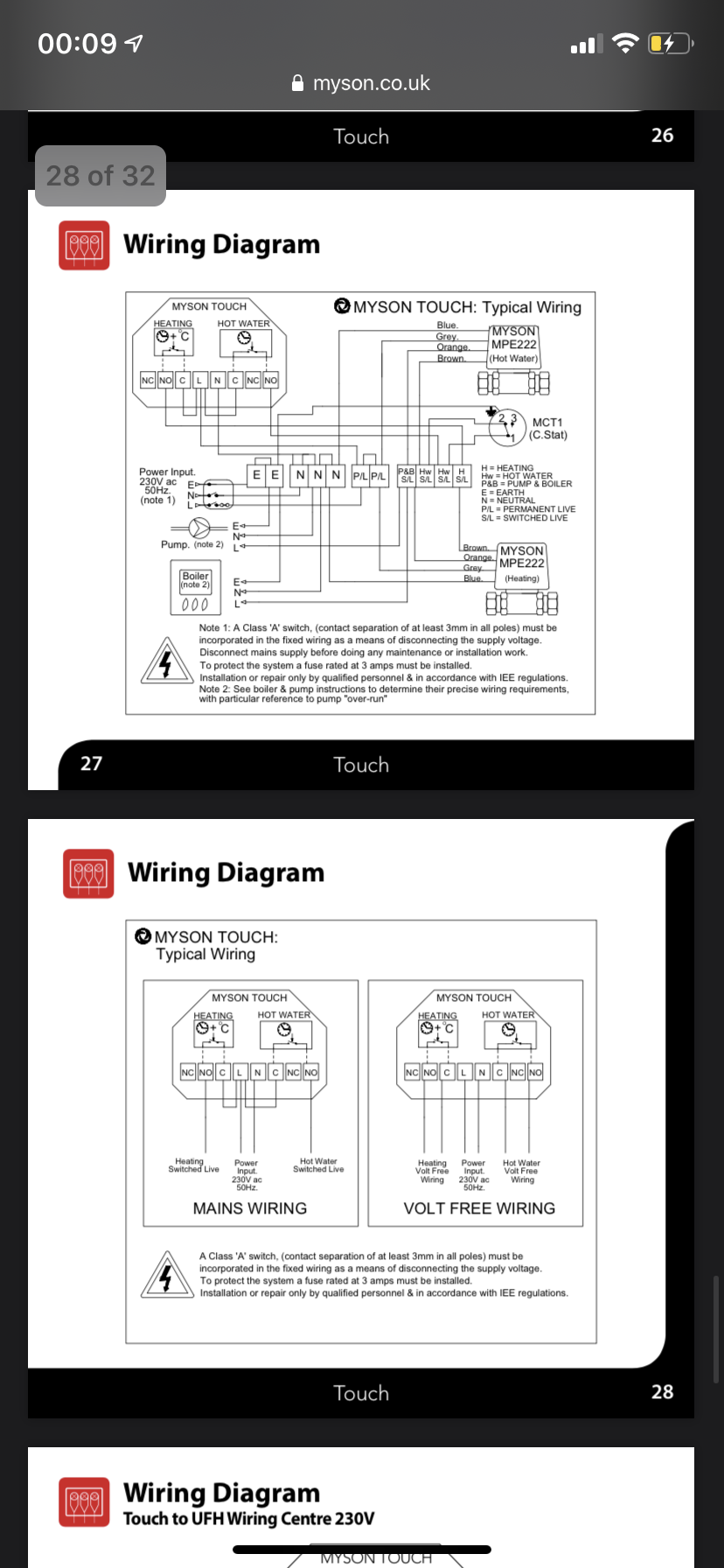

I have attached my current set up including the wiring for the Myson.

The device will be provided from SSE Energy with the heat link I believe.

I most likely will need to terminate the live wires because it’s battery powered, what’s the best and easiest way to do this?


[GALLERY=media, 104273]1C157565-57DF-41A2-9B1A-DCC77E99BA4B by Branflake98 posted 12 Apr 2020 at 11:52 PM[/GALLERY][GALLERY=media, 104272]D8EBC18B-FA27-4E61-AB5D-4A2EDA2D4348 by Branflake98 posted 12 Apr 2020 at 11:52 PM[/GALLERY]
[GALLERY=media, 104274]DDC08FD4-2B7E-4A0D-8CC4-75ACD1834527 by Branflake98 posted 13 Apr 2020 at 12:11 AM[/GALLERY]



[Gasplumber]

Looks like Neutral and live the same then black to 2 common grey to 3 switchlive
Check wiring tho as not done one for a bit but I’m sure common is terminal 2



[Gasplumber]

It’s correct like I said I just looked it up quickly



[flameport]

Black and grey to the Nest terminals.

The blue/brown L&N are 230V power for a proper mains powered thermostat or receiver, but as you have purchased a battery operated piece they are not required, but must be safely terminated and insulated.



[Branflake98]

Thanks for the response.
